Factors Affecting the FRP Pipe Pressure Rating

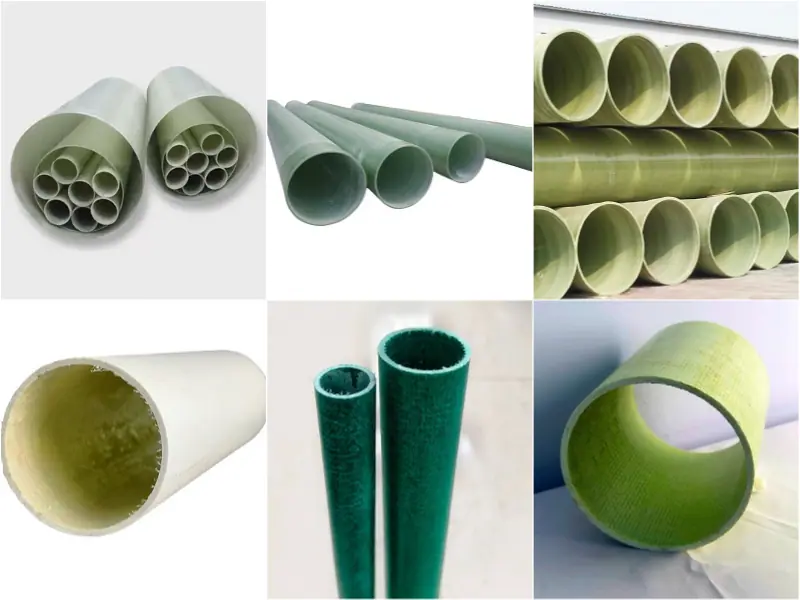

The frp pipe pressure rating refers to the maximum internal pressure that a fiberglass-reinforced plastic (FRP) pipe can safely handle without failing. This rating is critical for ensuring the pipe’s performance in industrial applications, where high-pressure fluids or gases are transported. The frp pipe pressure rating depends on factors such as the pipe’s wall thickness, resin type, and the specific operating conditions it will face. GangLong Fiberglass designs FRP pipes with pressure ratings that meet industry standards, providing reliable and safe solutions for applications requiring high strength and durability under varying pressures.

What Is FRP Pipe Pressure Rating?

The pressure rating of Fiberglass Reinforced Plastic (FRP) pipes is a critical factor that determines their safe and effective use in various industrial applications. FRP pipes are known for their high strength-to-weight ratio, corrosion resistance, and adaptability to harsh environments, but understanding the FRP pipe pressure rating is crucial to ensure the pipe’s long-term performance and safety. Additionally, the density of FRP pipe is an important factor that influences its pressure rating and overall mechanical properties. A higher density typically indicates greater strength and durability, allowing the pipe to withstand higher pressures without compromising its integrity.This rating dictates the maximum internal pressure the pipe can withstand without failure and helps engineers and contractors select the right materials for their projects.

FRP pipe pressure rating refers to the maximum internal pressure that a pipe can handle under normal operating conditions without risk of failure or deformation. This rating is typically measured in pounds per square inch (psi) or bars, with one bar being approximately 14.5 psi. Understanding this rating is essential because it directly impacts the safety and reliability of a piping system. Using a pipe with a pressure rating below the system’s requirements can lead to cracks, leaks, or catastrophic failure.

Several factors affect the pressure rating of FRP pipes, including the type of resin used in the construction, the thickness of the pipe walls, and the overall diameter of the pipe. For example, pipes manufactured by GangLong Fiberglass are designed with a range of pressure ratings to meet the specific needs of various industries, such as chemical processing, water treatment, and oil and gas operations.

FRP Pipe Pressure Rating Guide: Tips for Selection

When selecting an FRP pipe for a specific application, it’s important to keep the following tips in mind to ensure the right pressure rating is chosen:

Review System Requirements

Before selecting an FRP pipe, thoroughly review the operating pressure requirements of the system. This includes understanding both the normal operating pressure and any potential pressure surges that may occur. Ensure that the chosen pipe has a pressure rating that exceeds the system’s highest pressure demands.

Consult Manufacturer Specifications

Always consult the manufacturer’s specifications for the FRP pipe pressure rating, wall thickness, and other relevant data. Manufacturers like GangLong Fiberglass provide detailed pressure charts and dimensions that make it easier to match the correct pipe to the application.

Use a Pressure Safety Margin

It’s a good practice to build in a safety margin when selecting a pipe’s pressure rating. For example, if the system is expected to operate at 200 psi, it may be beneficial to select a pipe rated at 250 psi or higher to account for any unexpected pressure fluctuations.

Top Benefits of Using Green Fiberglass Insulation in Homes

Key Factors Affecting FRP Pipe Pressure Rating

The FRP (Fiberglass Reinforced Plastic) pipe pressure rating is an essential aspect of industrial piping systems, dictating the maximum pressure the pipe can handle under normal operating conditions. This rating is vital for ensuring that the pipe can withstand internal pressure without failure, making it a critical consideration in industries like chemical processing, water treatment, and oil and gas. By understanding the FRP pipe pressure rating, you can make informed decisions about pipe selection to ensure long-term reliability and safety for your projects.

Factors Elements FRP Pipe Pressure Rating

The pressure rating of an FRP pipe depends on multiple factors that determine how well the pipe can withstand internal pressure without failing, including the FRP pipe temperature limits, which play a critical role in ensuring optimal performance. Several factors determine the FRP pipe pressure rating, which defines the maximum pressure a pipe can handle without breaking or deforming. These factors include the type of resin used, wall thickness, diameter, and manufacturing process.Each of these components plays a role in how well the pipe can withstand internal pressure, and understanding this FRP pipe data is essential for selecting the right FRP pipe for your application.Below are the key elements that affect the FRP pipe pressure rating:

Resin Type

The resin used in the construction of an FRP pipe plays a significant role in its pressure resistance. Different resins have varying mechanical properties that impact the pipe’s ability to resist internal pressure. Standard polyester resins, for example, are often used in low- to moderate-pressure applications, while vinyl ester and epoxy resins provide higher pressure tolerance and are ideal for more demanding environments.

The choice of resin not only affects the pressure rating but also determines the pipe’s resistance to chemicals, UV exposure, and temperature. For high-pressure applications, GangLong Fiberglass offers pipes made with advanced resins like epoxy, which provide superior strength and durability.

Pipe Wall Thickness

Another critical factor that influences the FRP pipe pressure rating is the thickness of the pipe walls. Thicker walls provide greater strength and are capable of handling higher internal pressures. The thickness is usually defined in a pipe’s specifications, with varying thicknesses offered for different pressure requirements. For instance, a pipe with a nominal diameter of 10 inches may have wall thickness options that range from 3/8 inch to 1 inch, depending on the desired pressure rating.

When choosing an FRP pipe, it is essential to select the appropriate wall thickness to ensure that the pipe can safely withstand the expected operating pressure. Manufacturers like GangLong Fiberglass provide detailed thickness charts that help in selecting the right product for specific applications.

Diameter of the Pipe

The diameter of the FRP pipe also affects its pressure rating. Pipes with larger diameters generally have lower pressure ratings due to the increased surface area exposed to internal pressure. Conversely, smaller diameter pipes can handle higher pressures because of the reduced internal surface area. Understanding this relationship is crucial for engineers who need to balance pipe size and pressure tolerance when designing a system.

For instance, an FRP pipe with a diameter of 2 inches might have a higher pressure rating than a pipe with a diameter of 12 inches, even if both pipes are made from the same materials and have the same wall thickness. Using an FRP pipe dimensions chart can help identify the best pipe size for a specific pressure requirement.

FRP Pipe Weight Chart: Importance

In addition to the dimensions and pressure ratings, the weight of an FRP pipe is another important factor to consider during the selection process. The FRP pipe weight chart provides information on the weight of the pipe per unit length, which is essential for calculating the load-bearing requirements of the system.

Transportation and Installation

The weight of an FRP pipe affects its ease of transportation and installation. Lighter pipes are easier to handle and install, reducing labor costs and installation time. However, the weight of the pipe also impacts its strength and durability. Heavier pipes tend to have thicker walls and higher pressure ratings, making them better suited for demanding applications.

When using an FRP pipe weight chart, it’s important to balance the weight of the pipe with the system’s needs. For example, a pipe that is too heavy may require additional support structures, while a pipe that is too light may not provide adequate strength.

Structural Considerations

The weight of an FRP pipe also affects the structural integrity of the system. In applications where the pipes will be installed above ground or suspended, it’s important to ensure that the supporting structures can handle the weight of the pipes. The FRP pipe weight chart helps engineers calculate the total load on the system and design supports accordingly.

Temperature Tolerance

FRP pipes can handle a wide range of temperatures, but the temperature tolerance depends on the resin used in the pipe. High-performance resins, such as epoxy, can withstand higher temperatures than standard polyester resins, making them ideal for applications where the fluid temperature exceeds 200°F.

Reviewing the temperature tolerance in the FRP pipe specifications ensures that the pipe will maintain its performance and integrity under the system’s operating conditions. Selecting a pipe that exceeds the expected temperature range is important for ensuring long-term reliability.

Key of Using an FRP Pipe Dimensions Chart Effectively

An FRP pipe dimensions chart is an essential tool for engineers and contractors when selecting the right pipe for a project. This chart provides critical measurements, such as outer diameter (O.D.), wall thickness, and pressure ratings, which help ensure that the selected pipe will perform as expected in its intended application.

Outer Diameter (O.D.)

The outer diameter (O.D.) is one of the most important measurements in an FRP pipe dimensions chart. It represents the total width of the pipe, including its wall thickness. Knowing the O.D. is essential for ensuring that the pipe will fit with other components, such as flanges and fittings. The O.D. also helps determine the pipe’s pressure rating, as larger diameters typically have lower pressure tolerances.

When reviewing an FRP pipe dimensions chart, it’s crucial to match the pipe’s O.D. to the system’s needs to ensure proper fit and performance. For example, GangLong Fiberglass provides a range of pipe sizes, each with different O.D. measurements and pressure ratings, making it easy to find the right pipe for any project.

Wall Thickness

As mentioned earlier, the wall thickness of an FRP pipe is directly related to its pressure rating. Pipes with thicker walls can handle higher pressures, making wall thickness a key factor in determining the pipe’s suitability for specific applications.

The FRP pipe dimensions chart typically lists multiple wall thickness options for each pipe diameter, allowing you to choose a pipe that meets both the pressure and dimensional requirements of your system. For instance, a pipe with a nominal diameter of 8 inches may offer wall thickness options ranging from 1/4 inch to 3/4 inch, with thicker walls providing higher pressure ratings.

Pressure Rating

The pressure rating listed in the FRP pipe dimensions chart is critical for ensuring that the pipe will function safely and reliably under operating conditions. The pressure rating is usually given in pounds per square inch (psi) or bars, with one bar equal to approximately 14.5 psi.

When selecting a pipe, it’s important to choose a pressure rating that exceeds the system’s operating pressure to account for pressure fluctuations and surges. For example, if your system operates at 150 psi, it’s wise to select a pipe rated for 200 psi to provide a margin of safety. GangLong Fiberglass provides detailed pressure ratings for their FRP pipes, helping you select the right product for your needs.

How about the Role of Pipe Wall Thickness in FRP Pipe Pressure Rating?

The thickness of the pipe wall is another major factor determining the frp pipe pressure rating. Thicker pipe walls provide greater resistance to internal pressure, helping the pipe withstand higher pressure without deformation or failure. The wall thickness of FRP pipes is often designed to meet specific pressure requirements based on the industrial application and operating environment.

Standard Wall Thickness: Pipes with standard wall thickness are typically used for applications with lower or moderate pressure requirements. These pipes are well-suited for less demanding environments, such as water distribution systems, where the internal pressure is relatively low and stable.

Increased Wall Thickness: For applications with higher pressures, FRP pipes are manufactured with increased wall thickness to provide additional strength. Pipes with thicker walls are designed to handle the increased stress caused by high-pressure fluids or gases. GangLong Fiberglass manufactures FRP pipes with customizable wall thickness options to match the exact pressure requirements of each project, ensuring safe and reliable performance under pressure.

Pipe thickness also influences the pipe’s resistance to external forces and its ability to maintain its structural shape when subjected to internal pressure. A thicker pipe wall means better overall durability and performance in high-pressure systems.

How to Install Fiberglass Insulation Around Outlets Correctly

FRP Pipe Pressure Rating Applications and Factors

How About Using FRP Pipe Pressure Ratings in Different Applications?

FRP pipes are used across a range of industries, each with unique pressure requirements. Understanding the FRP pipe pressure rating ensures that the piping system will function properly under the given operating conditions. Below are some examples of how pressure ratings apply to different industrial applications:

Chemical Processing

In chemical processing plants, FRP pipes are often used to transport corrosive fluids. The pressure rating is critical in these applications to prevent leaks or pipe bursts. Pipes made from advanced resins, such as vinyl ester, are preferred for high-pressure, corrosive environments due to their enhanced chemical resistance and pressure tolerance.

Water Treatment

Water treatment plants rely on FRP pipes for both low- and high-pressure applications. Pressure ratings help determine the appropriate pipes for carrying treated water, raw water, or wastewater. For example, a low-pressure system may only require pipes rated at 100 psi, while a high-pressure system could require pipes rated at 300 psi or more.

Oil and Gas

In the oil and gas industry, FRP pipes are used in both onshore and offshore settings. The pressure rating is especially important in oil and gas production, where high-pressure pipelines are needed to transport fluids over long distances. Epoxy-based FRP pipes are often chosen for these applications due to their high-pressure capacity and resistance to harsh environmental conditions.

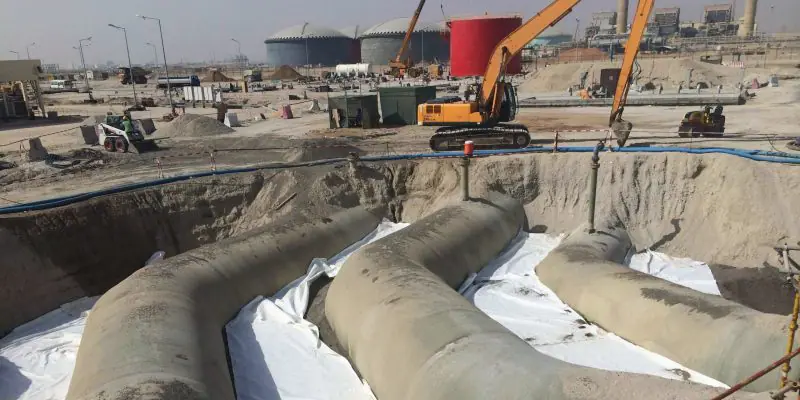

The Key of Resin Selection for FRP Pipe Pressure Rating

Resin selection is one of the most important factors influencing the frp pipe pressure rating. Different resins offer varying levels of mechanical strength and resistance to environmental factors, which directly affect how much pressure the pipe can handle. The three main types of resins used in FRP pipe construction are polyester, vinyl ester, and epoxy.

Polyester Resins: These resins are widely used for standard applications because they provide good strength at an economical price. FRP pipes made with polyester resins are suitable for systems with moderate pressure requirements. However, polyester resins are not recommended for applications with high pressures or aggressive chemicals.

Vinyl Ester Resins: Vinyl ester resins are ideal for applications that require higher pressure ratings and greater chemical resistance. These resins can handle more demanding conditions, including exposure to corrosive fluids and higher operating pressures. Pipes made from vinyl ester resins can tolerate higher stress, making them suitable for industrial processes where pressure levels fluctuate.

Epoxy Resins: Epoxy-based FRP pipes offer the highest pressure ratings and are used in extreme conditions. Epoxy resins provide excellent strength and durability, allowing the pipe to withstand high pressures and temperatures. GangLong Fiberglass offers epoxy resin-based FRP pipes for applications that require the highest frp pipe pressure ratings, such as in oil refineries and high-pressure fluid transport systems.

Choosing the right resin is crucial to ensuring that the FRP pipe can handle the intended pressure while maintaining structural integrity and performance over time.

What Are the Operating Conditions That Affect FRP Pipe Pressure Rating?

The frp pipe pressure rating is not only determined by the resin type and wall thickness but also by the specific operating conditions under which the pipe is used. These conditions can greatly influence how well the pipe handles pressure over time. Factors such as fluid type, operating temperature, and external environmental conditions all play a role in determining the appropriate pressure rating for an FRP pipe.

Fluid Type: The type of fluid being transported through the FRP pipe is a key consideration for determining the frp pipe pressure rating. Certain fluids, such as corrosive chemicals or abrasive slurries, can place additional stress on the pipe, reducing its pressure capacity. Pipes that will be used to transport aggressive fluids must be designed with both chemical resistance and pressure rating in mind. GangLong Fiberglass provides FRP pipes that are engineered to handle a variety of fluid types while maintaining high pressure resistance.

Operating Temperature: The temperature of the fluid inside the pipe can also affect the frp pipe pressure rating. As the temperature increases, the strength of the pipe material may decrease, reducing the pipe’s ability to handle pressure. Therefore, it is essential to select an FRP pipe that is rated for both the pressure and temperature conditions of the system. High-temperature environments require FRP pipes with specialized resins and thicker walls to ensure safety and reliability.

External Environmental Conditions: In some applications, the external environment can also impact the frp pipe pressure rating. For example, pipes used outdoors may be subjected to extreme temperature fluctuations, UV exposure, or mechanical stress. In these cases, it’s important to choose an FRP pipe that is not only rated for the internal pressure but also designed to withstand external environmental factors, including the FRP pipe roughness factor. Selecting a pipe with an appropriate roughness factor ensures optimal flow performance and minimizes friction losses, contributing to the overall efficiency of the system. GangLong Fiberglass offers FRP pipes with protective coatings and custom designs to ensure they perform reliably in harsh external conditions.

By considering all these operating conditions, you can choose the correct FRP pipe with the appropriate pressure rating to ensure long-lasting performance in any environment.

The Importance of Testing for FRP Pipe Pressure Rating

Before an FRP pipe can be deployed in an industrial setting, it must undergo rigorous testing to ensure that it meets the specified frp pipe pressure rating. These tests verify that the pipe can handle the expected internal pressure without failing, deforming, or losing performance over time.

Hydrostatic Testing: One of the most common methods for testing the frp pipe pressure rating is hydrostatic testing. In this process, the pipe is filled with water or another liquid, and pressure is applied to simulate the operating conditions of the system. The pressure is gradually increased to a level higher than the expected operating pressure to test the pipe’s ability to withstand stress. If the pipe passes this test without leaking or deforming, it is certified as having met the required pressure rating.

Burst Testing: Burst testing is another method used to determine the maximum frp pipe pressure rating. This test involves applying pressure to the point where the pipe bursts or fails, providing a clear indication of the pipe’s upper pressure limit. Burst testing is useful for establishing safety margins and ensuring that the pipe can handle more than the intended operating pressure.

Long-Term Pressure Testing: In addition to short-term pressure testing, FRP pipes may also undergo long-term pressure testing to simulate the effects of continuous use over time. This test helps to identify any potential weaknesses in the pipe’s structure that could lead to failure after prolonged exposure to pressure. By simulating real-world operating conditions, long-term pressure testing ensures that FRP pipes are reliable for extended use.

GangLong Fiberglass conducts comprehensive pressure testing on all its FRP pipes to ensure they meet the highest industry standards for safety and performance.

How about the Industry Applications Requiring High FRP Pipe Pressure Rating?

FRP pipes with high pressure ratings are essential in many industries where the safe transport of high-pressure fluids and gases is critical. The ability to withstand significant pressure without failure makes FRP pipes a preferred choice for applications such as chemical processing, oil and gas production, and water treatment.

Chemical Processing: In the chemical industry, FRP pipes are often used to transport corrosive chemicals at high pressures. The combination of chemical resistance and high-pressure capacity makes FRP pipes an ideal solution for these demanding environments.

Oil and Gas: The oil and gas industry requires pipes that can handle high-pressure fluids, such as oil, natural gas, and petroleum products. FRP pipes are commonly used in pipelines, offshore platforms, and refineries, where pressure resistance and durability are crucial.

Water Treatment: Water treatment plants often use FRP pipes for the high-pressure transport of treated water and wastewater. These pipes must be capable of handling the pressure generated by pumps and filtration systems while resisting corrosion from various chemicals used in the treatment process.

GangLong Fiberglass designs and manufactures FRP pipes with high FRP pipe pressure ratings and FRP pipe fire rating that are tailored to the needs of these and other industries, ensuring safe and efficient operation in pressure-critical environments.

What Are the Advantages of GangLong Fiberglass FRP Pipes with High Pressure Ratings?

GangLong Fiberglass is committed to producing FRP pipes that meet the most demanding pressure requirements across various industries. The company’s FRP pipes are engineered to provide superior strength, durability, and resistance to pressure, ensuring reliable performance even in the most challenging conditions.

Customizable Solutions: GangLong Fiberglass offers FRP pipes in a variety of sizes, wall thicknesses, and resin formulations, allowing clients to choose the right product for their specific pressure and environmental needs.

Industry Compliance: All FRP pipes from GangLong Fiberglass are manufactured in compliance with industry standards, ensuring that they meet the necessary frp pipe pressure ratings for safety and performance.

Long-Term Durability: With their high-pressure capacity and resistance to environmental stressors, GangLong Fiberglass FRP pipes are designed to provide long-term durability, reducing the need for frequent replacements and minimizing maintenance costs.

By selecting FRP pipes from GangLong Fiberglass, industries can benefit from high-performance products that meet their specific pressure requirements, ensuring safe and reliable operation in pressure-sensitive applications.

Why Choose Brown Fiberglass Insulation for Attics and Walls

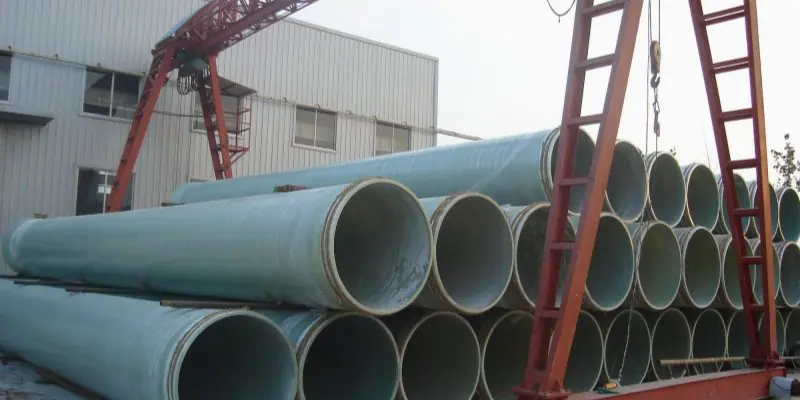

What Is the Importance of FRP Pipe Pressure Rating?

FRP pipe pressure rating defines the maximum internal pressure the pipe can endure under normal operating conditions. This pressure is typically measured in pounds per square inch (psi) or bars, with 1 bar approximately equal to 14.5 psi. The correct pressure rating ensures that the pipe will maintain its structural integrity during use without cracking, bursting, or deforming.

In industries where FRP pipes are used, such as in the transport of corrosive chemicals or in high-temperature applications, understanding and adhering to the pipe’s pressure rating is crucial. Using a pipe with a pressure rating lower than the system’s needs can lead to system failure, posing safety risks and resulting in costly repairs or downtime.

FAQs about Frp Pipe Pressure Rating

What are the pressure classes for GRP pipe?

GRP (Glass Reinforced Plastic) pipes are categorized into different pressure classes based on their ability to withstand internal pressure. These pressure classes are typically expressed in bars, with one bar being equivalent to approximately 14.5 psi. The most common pressure classes for GRP pipes range from 6 bar (87 psi) to 32 bar (464 psi), depending on the design, wall thickness, and intended application. For instance, a 6-bar GRP pipe might be suitable for low-pressure water distribution, while a 16-bar or higher-rated GRP pipe could be used in industrial applications where higher pressure handling is necessary.
The pressure class of GRP pipes is determined by their mechanical strength, which is influenced by factors like the type of resin used, the reinforcement materials, and the thickness of the pipe walls. When selecting GRP pipes, it’s crucial to match the pressure class with the operating conditions of the system to ensure long-term reliability and safety. Manufacturer specifications and design standards, such as those from GangLong Fiberglass, should always be consulted to choose the correct pressure class for a particular application.

What is the pressure rating of FRP flanges?

FRP (Fiberglass Reinforced Plastic) flanges are commonly used in industrial applications where corrosion resistance and lightweight materials are essential. The pressure rating of FRP flanges depends on factors such as the type of resin, the reinforcement material, the flange design, and the operational temperature. Typically, FRP flanges have pressure ratings that range from 150 psi to 300 psi, but in some cases, they can be engineered to handle higher pressures depending on the application.
The pressure rating also correlates with temperature; as the operating temperature increases, the pressure rating of the flange may decrease due to the material’s thermal expansion and potential softening of the resin. When selecting FRP flanges, it’s crucial to ensure the pressure rating matches the operational needs of the system. Always refer to manufacturer guidelines, like those provided by GangLong Fiberglass, to understand the limitations and performance characteristics of the flange under specific operating conditions.

What is the pressure rating of plastic pipe?

The pressure rating of plastic pipes varies significantly based on the material, thickness, and intended application. For example, commonly used plastic pipes such as PVC (Polyvinyl Chloride) and HDPE (High-Density Polyethylene) have different pressure ratings. PVC pipes are generally classified into pressure ratings like Schedule 40 or Schedule 80, where Schedule 40 pipes can handle pressures up to 450 psi (pounds per square inch) at room temperature, while Schedule 80 pipes can handle higher pressures, sometimes exceeding 600 psi depending on the size and wall thickness. HDPE pipes, often used in water and gas distribution systems, have pressure ratings ranging from 100 psi to 160 psi or higher, depending on the pipe’s size and the standard it meets.
The pressure rating for plastic pipes is determined by the material’s strength and how it can withstand internal pressure without bursting or deforming. Different standards, such as ASTM or ISO, provide guidelines for determining the appropriate pressure rating based on the pipe’s diameter, wall thickness, and intended use.

 What is the Pressure Rating of FRP Pipe?

The pressure rating of an FRP (Fiberglass Reinforced Plastic) pipe refers to its ability to withstand internal pressure without failure. This rating is determined by the pipe’s design, material strength, and the reinforcement method used in its construction. FRP pipes are typically designed to handle a range of pressures, from low to high, depending on their application. The pressure rating is usually specified in terms of “pounds per square inch” (psi) or “bars” and can vary significantly. For instance, FRP pipes for general industrial applications may have pressure ratings of 150 psi, while pipes for more demanding applications, such as chemical plants or offshore oil rigs, can be rated for up to 2000 psi or higher. The pressure rating depends on factors like pipe diameter, wall thickness, resin type, and the type of reinforcement used (e.g., glass fibers).

What is the Pressure Design for FRP Pipe?

The pressure design for an FRP pipe is a calculation that ensures the pipe can handle the anticipated internal pressure without failure. The design considers several factors, including the pipe’s material properties (such as the strength of the resin and reinforcement), the geometry of the pipe (e.g., diameter and thickness), and the type of load it will endure. FRP pipes are typically designed using the “Hoop Stress” formula, which calculates the stress on the pipe walls from internal pressure. This formula accounts for the tensile strength of the pipe material and the distribution of reinforcement. FRP pipes often feature multiple layers of glass fiber, each layer aligned to enhance strength in different directions. By combining these materials and designing for the specific operating pressure and environmental conditions, manufacturers can ensure that the pipe will safely withstand the intended pressure without deformation or failure.

What Are the Disadvantages of FRP Pipes?

Despite their many advantages, FRP pipes also have some disadvantages. One major drawback is their susceptibility to damage from ultraviolet (UV) radiation, which can weaken the resin and reduce the pipe’s overall lifespan if exposed to sunlight for prolonged periods. To counteract this, UV-resistant coatings or protective layers are often applied. Another disadvantage is the relatively high initial cost of FRP pipes compared to traditional materials like PVC or steel, although they offer long-term savings due to their durability and corrosion resistance. Additionally, FRP pipes can be brittle under certain conditions, particularly in low temperatures, and may crack or fail if subjected to sharp impacts. The installation process for FRP pipes can also be more complex due to the need for specialized skills and tools, particularly when it comes to cutting, joining, or modifying the pipes. Finally, while FRP pipes offer high pressure ratings, their strength may degrade over time, especially under extreme chemical exposure.
